  • 3D In line Solder Paste Inspection Machine InSPIre-1200 Plus

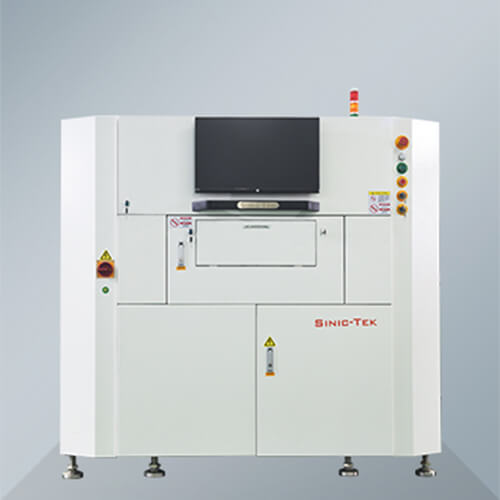

3D In line Solder Paste Inspection Machine InSPIre-1200 Plus

3D In line Solder Paste Inspection Machine InSPIre-1200 Plus

  • 3D SPI
  • PCB size:1200 x550mm
  • Dimension:​850x1430x1500mm
  • weight:850KG
  • Product description: 3D In line Solder Paste Inspection Machine InSPIre-1200 Plus, PCB size:1200 x550mm
  • INQUIRY

3D In line Solder Paste Inspection Machine InSPIre-1200 Plus

Specifications:

TECHNICAL PARAMETERS:

Inspection Principle: Programmable phase contour modulation measurement techniques(PSLM PMP)

Inspection type:Volume, area, height, XY offset, shape, etc.

Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.

Smallest component: 0402.

Accuracy: XY=10 um,Height = 0.37 um.

Repeatability: height:≤1um 4 Sigma;volume/acreage<1%4 Sigma.

Maximum Loading PCB Size(X*Y):1200x550mm.

Inspection Speed: 0.35 SEC/FOV.

Fiducial Detection Time: 0.3sec/piece.

Maximum inspection height:±450um±1200umOption.

RGB Tune patented technology.

D-lighting patented technology.

Dynamic and static warpage compensation.

Barcode function with traceability.

Closed loop to printers.

Badmark transfer function to mounters.

Access IMS system functions.

Operating System Support: Windows 7 Professional (64 bit).

Five-minute programming, one-click operation.

SPC process control.
