ERSA ECOSELECT 4 Selective Soldering Machine

PCB size 508 x 508 mm
dual solder pots
PCB weight: 15 kg
Mini-wave 13 kg up to 2 pots

ERSA ECOSELECT 4 Selective Soldering Machine

Specifications:

ERSA ECOSELECT 4 Selective Soldering Machine

Flexibly integrable soldering system: inline or batch operation

VERSAFLOW 4 technology

PCB size 508 x 508 mm

Roller conveyor

Up to two spray heads and flux tanks

Powerconvection

y/z variable dual solder pots

Automatic nozzle activation

Upgrade with independent flux module to a full inline machine

Award-winning ERSASOFT 5 software

VERSACAM – solder wave height measurement “on the fly”

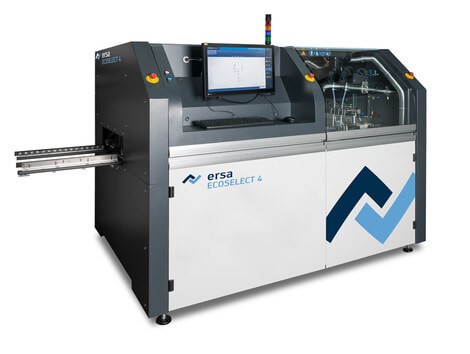

Selective Soldering Machine ERSA ECOSELECT 4

The ECOSELECT 4 is Ersa’s newest selective soldering system. It is a compact system that is perfectly suited for small up to medium-sized batches where flexibility is essential. The ECOSELECT 4 features machine technology of the latest VERSAFLOW generation. Its conveyor system is a high-quality roller conveyor for a max. PCB size of 508 x 508 mm. The ECOSELECT 4 can be used inline or in batch operation. Another machine highlight is the new power convection heating, for example, which provides an optimal and homogenous warm-up also of complex boards. Like all Ersa selective soldering systems the ECOSELECT 4 is equipped with a programmable precision spray fluxer with integrated spray control for precise and economical flux application in single spots or in tracks. A second spray head is available as an option.

Innovative machine operation with ERSASOFT 5

The new dual solder pot system of the VERSAFLOW 4 is also available for the ECOSELECT 4. Both mini wave pots can be moved flexibly in Y/Z direction. Thus, the machine operator can install solder nozzles with different diameters in order to quickly solder connectors using a nozzle with large diameter and using a very slim nozzle shape for joints which are difficult to reach. The innovative and user-friendly ERSASOFT 5 software renders machine operation even more intuitive. Through individual user interfaces, each group of operators receives, at one glance, the data and information it requires. A further software highlight is the PiP technology (picture in picture) combined with a process monitoring camera.

Dimensions

Length from 2,000 mm

Width approx. 1,800 mm

Height approx. 1,700 mm

Conveyor system

Roller conveyor

PCB width: 50-508 mm

PCB length: 127-508 mm

Maximum PCB top side clearance: 120 mm

Maximumg PCB bottom side clearance: 60 mm

Maximum PCB weight: 15 kg

Media supply

Nitrogen

Pneumatic system

Electric supply

Extracted air

Flux module

Drop-Jet in different sizes

Preheat module

IR heating, convection (option), powerconvection (option)

Solder module

Electromagnetic solder pot

Mini-wave 13 kg up to 2 pots
