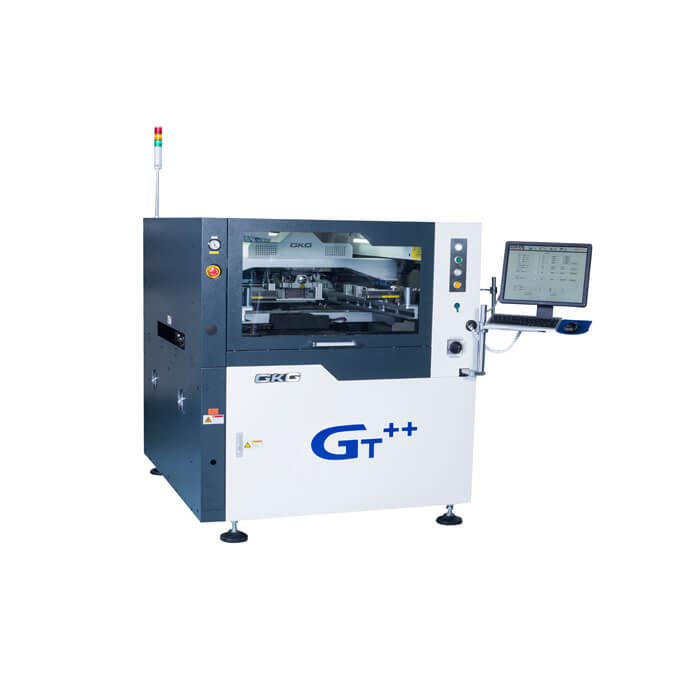

GKG GT++ SMT Stencil Printer

PCB size:510mm x 510mm
Voltage: 220V
size: 1240*1410*1500mm
Weight:1100Kg

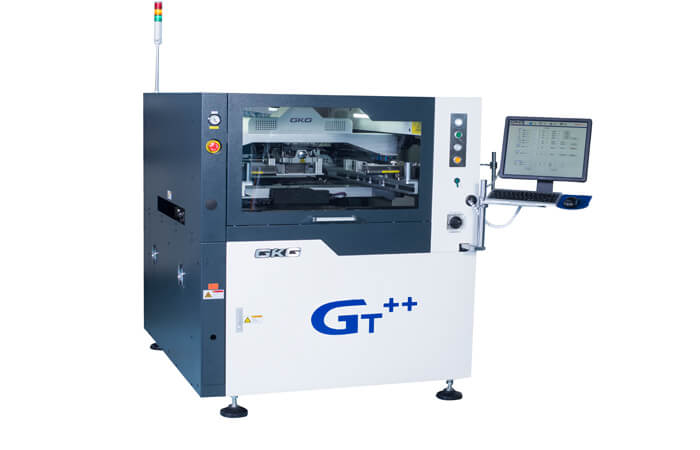

GKG GT++ SMT Stencil Printer

Specifications:

GKG GT++ SMT Stencil Printer

GKG Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size:50mm x 50mm ~510mm x 510mm;

PCB thickness: 0.4mm ~ 14mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

Item

Parameter

Repeat Position Accuracy

±0.01mm(Test data and method are available)

Printing Accuracy

±0.025mm(Test data and method are available)

Printing Speed / Cycle Time

<8s (Exclude Printing & Cleaning)

Products Changeover

<5Min

Screen Stencil Size/Min-Max

470mm X370mm-737mm X737mm

Screen Stencil Size/Thickness

20mm ~ 40mm

PCB Size/Min-Max/Thickness

50X50mm-510X510mm/0.4~15mm

PCB Warpage Ratio

<1%Based on diagonal length

Bottom of Board Size

15mmStandard configuration, 25mm

Edge of Board Size

3mm

Conveyor Height

900±40mm

Conveyor Direction

Left-Right; Right-Left; Left-Left; Right-Right

Conveyor Speed

100-1500mm/sec Programmable control

Board Positioning

Support System

Magnetic pin/Side support block/Flexible automatic pinoptional

Clamping System

Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting

Print head

Two indepandent Motorised printheads

Squeegee Speed

6~300mm/sec

Squeegee Pressure

0-10kg software controlclosed-loop pressure feedback, pressure value visible

Squeegee Angle

60°(Standard )/55°/45°

Squeegee Type

Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.

Steel Mesh Separation Speed

0.1~20mm/sec Programmable Control

Cleaning Method

Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods

Table Adjustment Range

X/Y:±20mm;θ:±2°

Type of Fiducial Point

Standard geometry shape of fiducial point, bonding pad / Stencil hole

Camera System

Single digital camera for upward/downward vision system

Air Pressure

4~6Kg/cm2

Air Consumption

Approx 0.07m3 /min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1Φ 1.5KW

Machine Dimensions/Weight

Depends on exactly model

Operation Temperature

-20°C ~ +45°C

Operation Humidity

30%~60%
