  • SM482P Chip Mounter

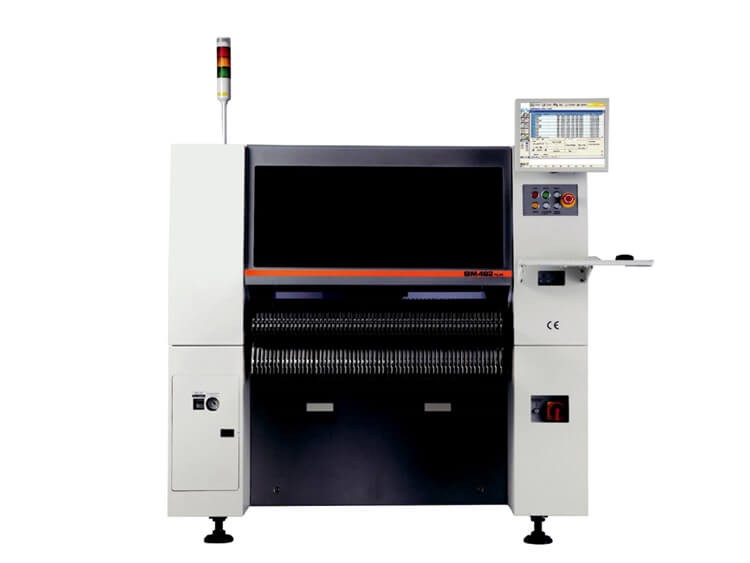

SM482P Chip Mounter

SM482P Chip Mounter

  • Speed : 30,000CPH (Optimum)
  • Structure : 1 Gantry x 6 Spindles/Head
  • component range:0402(01005)
  • PCB Size : L460xW400
  • Product description: JUKI RX-7R Pick and Place Machine, Speed : 30,000CPH (Optimum), Structure : 1 Gantry x 6 Spindles/Head, component range:0402(01005), PCB Size : L460xW400
  • INQUIRY

Hanwha SM482 Plus Pick and Place Machine

Specifications:


1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

Top Advantage:
1. Advanced High Speed Flexible Mounter.
2. High Speed, High Precision and Electrically Driven Feeder.

3. New Vacuum System and Optimized Pickup/ Placement Motion.

Specifications
SAMSUNG SMT Pick and Place Machine
Model Name
SM471plus
SM481plus
SM482plus
Alignment
Flying Vision
Flying Vision+stage vision
Flying Vision+stage vision
Spindles
10 Spindles × 2 Gantries
10 Spindles × 1 Gantry
6 Spindles × 1 Gantry
Placement Speed
78,000CPH(Optimum)
40,000CPH(Optimum)
30,000CPH(Optimum)
Placement Accuracy
±40μm@μ±3σ
±40μm@μ±3σ
±40μm@μ±3σ
Applicable Parts
0402 ~ 14mm(H 12mm)
0402 ~ 42mm(H 15mm)
0402 ~ 55mm(H 15mm)
Applicable PCB(L × W)
Max. 510 × 460(Standard)
Max. 460 × 400(Standard)
Max. 460 × 400(Standard)
Max. 610 × 460(Option)
Max. 1500 × 460(Option)
Max. 1200 × 510(Option)
Dimension(L.D.H)
1650×1690×1458
1650×1680×1530
1650×1680×1458
Mass(Kg)
Approx. 1820
Approx. 1655
Approx. 1600

Keywords:


JUKI Pick and place Machine, Samsung Pick and Place Machine, Hanwha Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
