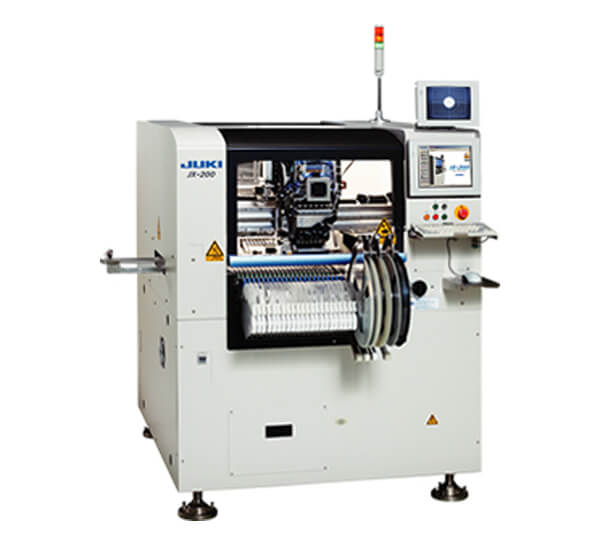

JUKI JX-200 Pick and Place Machine

Max PCB:410mm× 250 mm
Mounting Speed: 18,050CPH
components ranging:0603~33.5mm

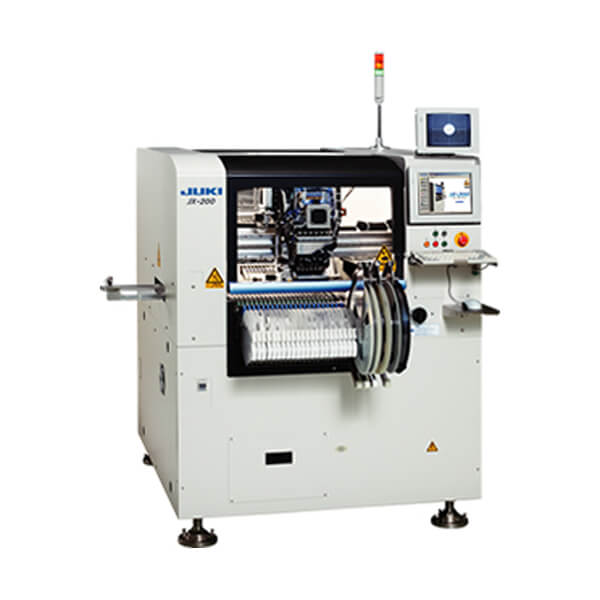

JUKI JX-200 Pick and Place Machine


JUKI JX-200 Pick and Place Machine

Chip : 18,050CPH(0.199Sec./chip/Optimum)/13,900CPH(IPC9850)
IC : 4,400CPH
Component size
Laser recognition : 0603 ※2 ~33.5mm
Vision recognition Standard camera : 3mm~33.5mm
High-resolution camera (option) : 1.0×0.5mm~24.0mm
Placement accuracy
Laser recognition : ±0.05mm (±3σ)
Vision recognition : ±0.04mm
high-speed and high precision placement technology
Superior Versatility
High Quality Placement Technology
Easy and Compact
Longer sized PWB in X axis (up to 800 mm × 250 mm) (option)
2 HMS is required when a 0603 component is placed. (option)

Board size

Min.50 × 50 Max.800*1 × 250mm

Component height



Component size

Laser recognition

0603*2 33.5mm


Standard camera

3mm 33.5mm

High-resolution camera (option)

1.0 × 0.5mm 24.0mm

Placement speed



0.199Sec./chip (18,050 CPH)





Placement accuracy

Laser recognition

±0.05mm (±3σ)

Vision recognition


Feeder inputs

Max.60 on 8mmT/F

When using Longer sized PWB(800mm) option. (standard specification is Max.410mm)

HMS is required when a 0603 component is placed. (option)
