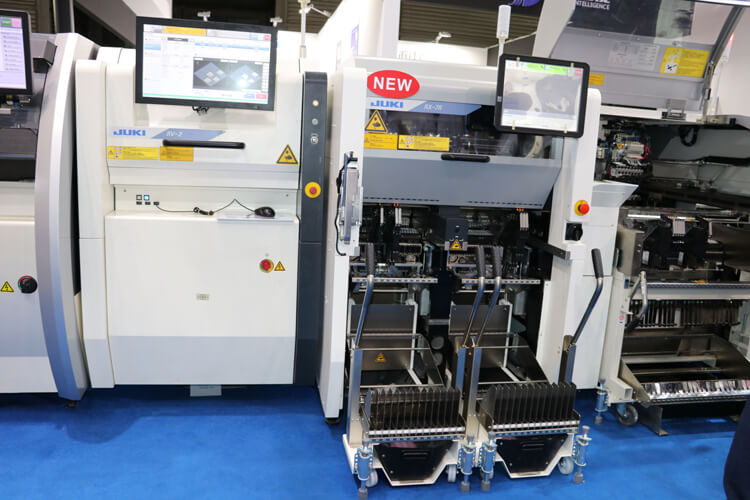

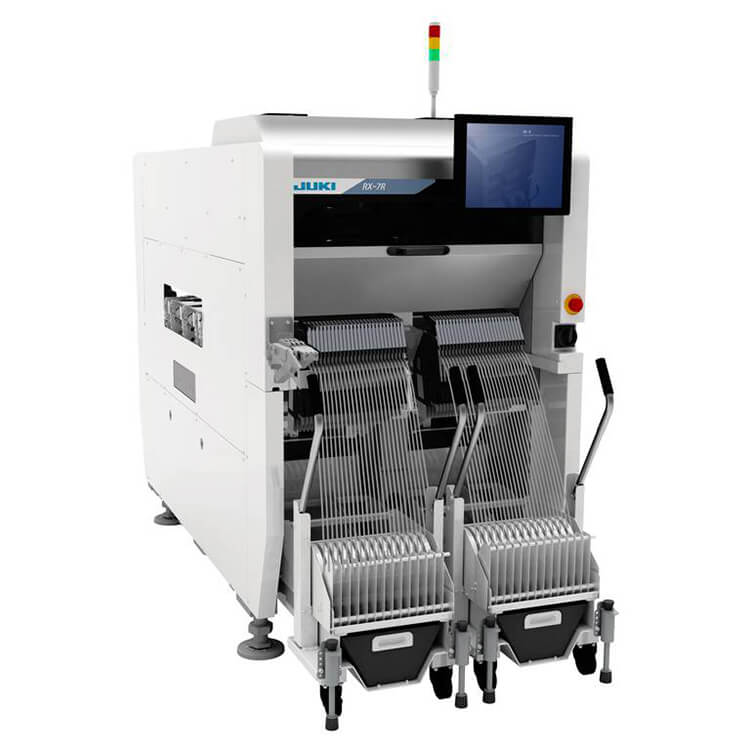

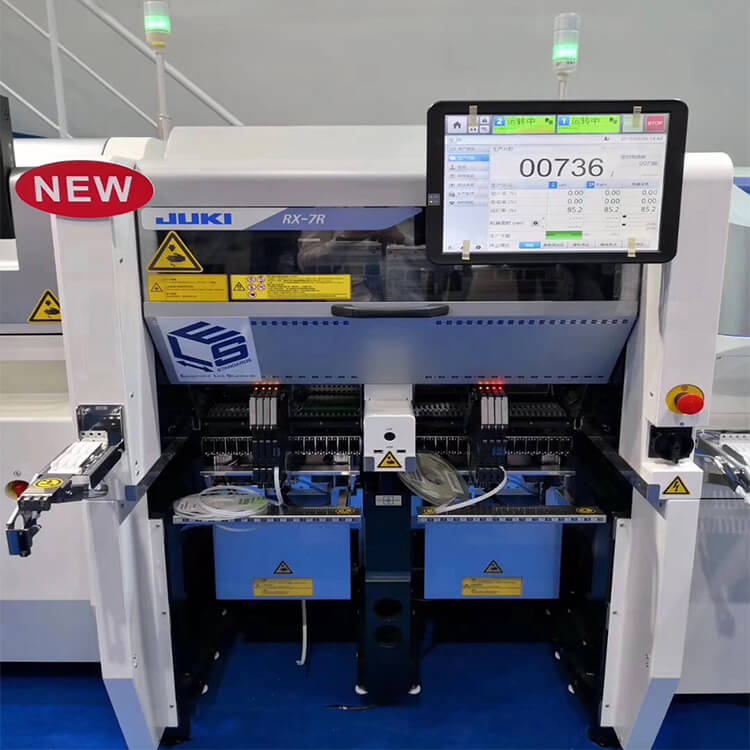

JUKI RX-7R Pick and Place Machine

JUKI RX-7R Pick and Place Machine

Specifications:

JUKI RX-7R Pick and Place Machine

Component placement speed (optimal conditions): Chip components 75,000 CPH

Element size: 03015 chip ~ 25mm square element

P16 Rotary head enables high-speed, high-density placement of extremely small components

P8 placement head enables high-speed, high-precision placement of small and medium-sized general-purpose components

Space-saving design with a width of 998mm

Supports dual-track production

By combining the placement head, the optimal production line can be constructed according to the production variety.

High production performance achieved by the unique planetary placement head and parallel dual placement head structure

Compatible with small IC components with 03015 chip to 25mm

High -Speed Compact Modular Mounter RX-7R
		(P16S×P16S head)	(P16S×P8 head)	(P8×P8 head)
Board size	Single lane conveyer	50×50~510mm×450mm
	Single lane conveyer Single lane mode	50×50~510mm×450mm
	Single lane conveyer Dual lane mode	50×50~510mm×250mm
Component height		3mm	3mm(P16S head)	10.5mm
			10.5mm(P8 head)
Component size		03015~5mm	03015~5mm(P16S head)	0603~25mm
			0603~25mm(P8 head)
Placement speed (Optimum)	Chip	75,000 CPH	54,900 CPH	34,800 CPH
	IC	-	6,400 CPH	12,800 CPH
Placement accuracy	Chip	±0.04mm(Cpk≥1)
	IC	-	±0.04mm
Feeder capacity		Up to 56
Power supply		3 phase AC200V,220V-430V
Apparent power		2.3kVA
Operating air pressure		0.5±0.05MPa
Air consumption (standard)		20L/ANR(during normal operation)
Machine dimensions (W x D x H)		998×1,895×1,530mm	998×1,895×1,530mm
Mass (approximately)		about 1,820kg

Keywords:

JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments ,  JUKI products,  JUKI Pick and Place Machine Machine,  JUKI SMT Stencil Printer,  JUKI Assembly Line,  JUKI SMT Reflow Oven;  JUKI SMT Inspection Machine;  JUKI SMT Spare Parts;  SMT Equipment;  JUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: tommy@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?

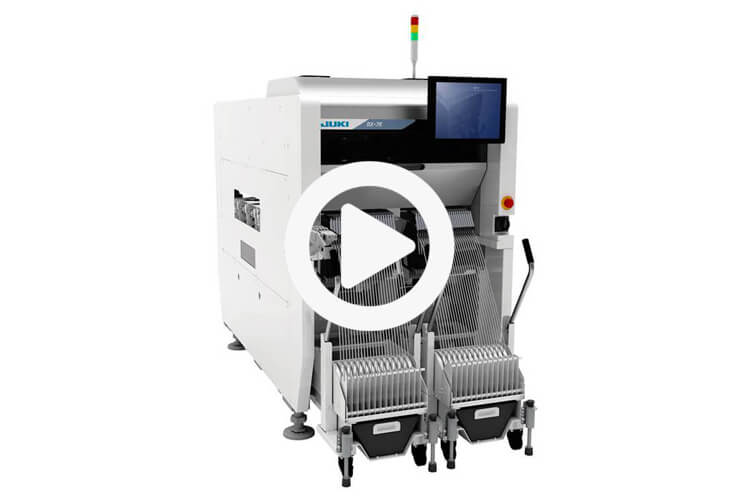

There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
