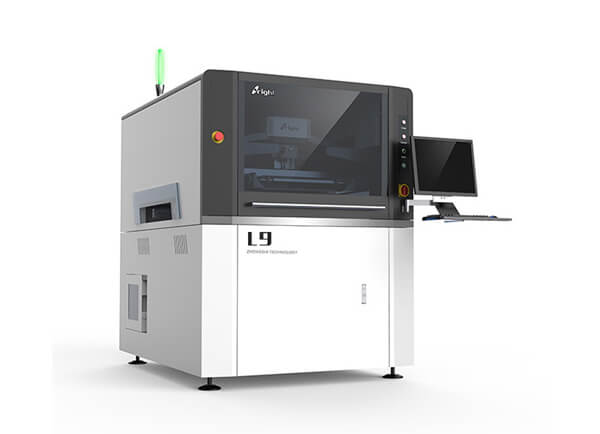

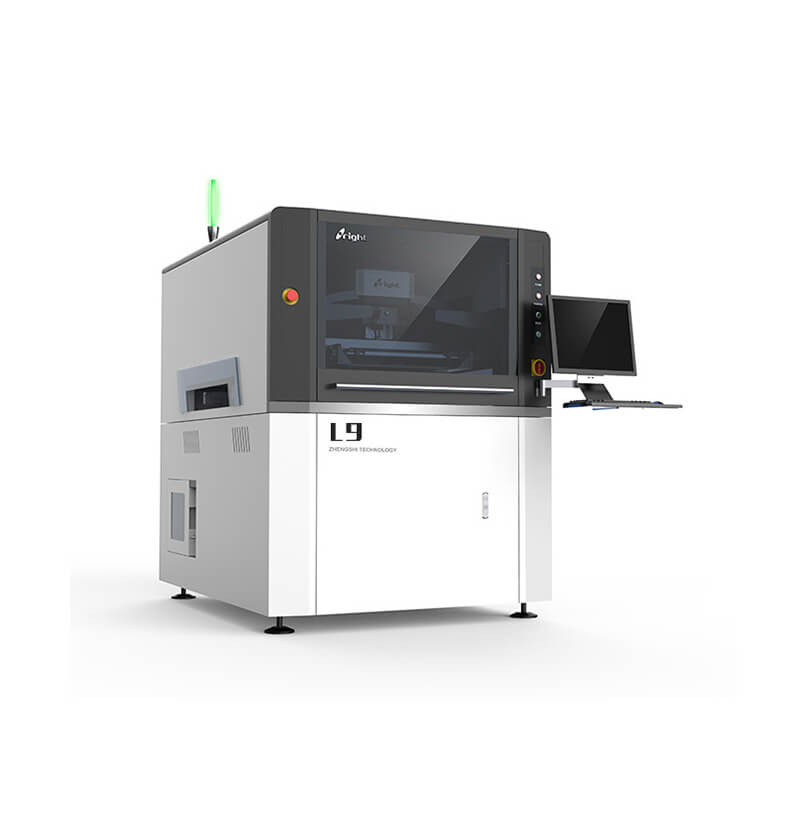

L9 SMT Stencil Printer

Printing Accuracy ±0.025mm
PCB Max Size 900X600mm
size: 1580(L)X1530(W)X1500(H)mm
Weight:1400Kg

L9 SMT Stencil Printer

Specifications:

L9 SMT Stencil Printer

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;

New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;

2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure

for a little while can back again. According to the product flexible use

3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.

4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy

5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;

6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;

Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item

Model

L9

PCB Min Size

50X50mm

PCB Max Size

900X600mm

PCB Thickness

0.4~8mm

PCB Warpage

<1%

Transport Height

900±40mm

Transport Direction

Left-Right;Right-Left;Left-Left;Right-Right

Transport Speed

Max 1500mm/S Programmable

Board Location
PCB Positioning

Support System

Magnetic Pin/Up-down table adjusted/supportblock

Clamping System

side clamping,vacuum nozzle

Print head

Two independent motorised printheads

Squeegee Speed

6~200mm/sec

Squeegee Pressure

0~30Kg

Squeegee Angle

60°/55°/45°

Squeegee Type

Stainless steel(Standard), plastic

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning System

Dry、Wet、Vacuum (Programmable)

Table Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine


Repeat Position Accuracy

±0.01mm

Printing Accuracy

±0.025mm

Cycle Time

<12s (Exclude Printing & Cleaning)

Product Changeover

<5Min

Air Required

4.5~6Kg/cm2

Power Input

AC:220±10%,50/60HZ , 3KW

Control Method

PC Control

Machine Dimensions

1580(L)X1530(W)X1500(H)mm

Machine Weight

Approx:1400Kg
