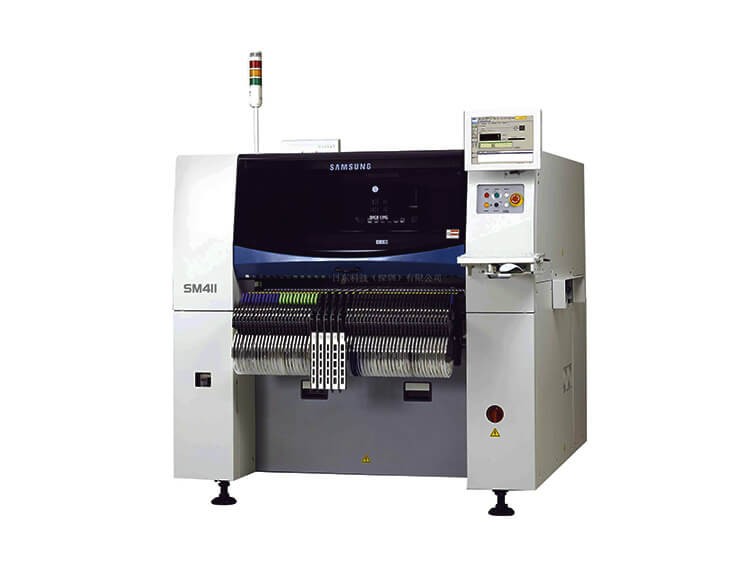

Samsung SM411 Pick and Place Machine

PCB size 510 (L) x 460 (W)
Patch speed 42,000CPH
Mounting range 0402 chip to the largest 14mm IC
Equipment weight 1820kg

Samsung SM411 Pick and Place Machine

Specifications:

Samsung SM411 Pick and Place Machine

Parallel dual-track, PCB handling time 0 seconds

Very low material loss rate: two ten thousandths

Samsung's unique flight-centered recognition system (Fly Vision)

Feeder component position automatic identification function

Advanced flat wire structure

Anti-static ESD nozzle

New non-stop feeder

PM Manager Management Features:

IPC9850 standard can mount 42,000CPH (Chip 1608)

Dual Manipulator Drive System (12 heads)

In flight recognition system of images

Y-axis dual servo motor drive system

Bilateral standard feeder base

Can be installed 120 8mm belt feeders

Reference point recognition camera

Automatic nozzle replacement device

Color LCD

Double rail transfer system

Rail width automatically adjust

PCB edge clamping device

Feeding process tracking sensor

Windows XP operating system

Order and feed sorting automatic optimization program

A standard nozzle

Samsung SM411 parameters

To the way the flight vision

Number of Spindles 6 Spindles x 2 Gantry

Mounting Speed Flying Vision Chip 1608

SOP 42,000 CPH (IPC9850)

30,000 CPH (IPC9850)

Mounting accuracy Chip ± 50 μ @ 3σ / Chip

(Based on the standard chips)

Narrow pitch mounting 0.1mm (0603) / 0.15mm (1005)

Components range of 0603 ~ □ 14mm Chip, QFP, BGA

(Option: 0402 Please contact us. The more information will be available upon your request.)

Minimum pin pitch (QFP)

Minimum ball pitch (BGA) 0.5mm (QFP) / 0.65mm (BGA)

The maximum height H = 12mm

Board Size (mm) Min 50 (L) x 40 (W)

Maximum 510 (L) x 460 (W)

(Single Lane Mode, 460 (L) Excess: No Buffer)

460 (L) x 250 (W) (Dual Lane Mode)

610 (L) x 460/250 (W) (Option)

PCB thickness 0.38mm ~ 4.2mm

Number of feeders 120ea / 112ea (Feeder changer)

Power Consumption Power consumption AC200 / 208/220/240/380/415 V (50 / 60Hz, 3Phase)

Max. 5.0kVA

Air consumption of 0.5 ~ 0.7MPa (5.1 ~ 7.1kgf / cm2), 300N? / Min

Weight 1,820kg

Dimensions (mm) 1,650 (L) x 1,690 (D) x 1,535 (H)
