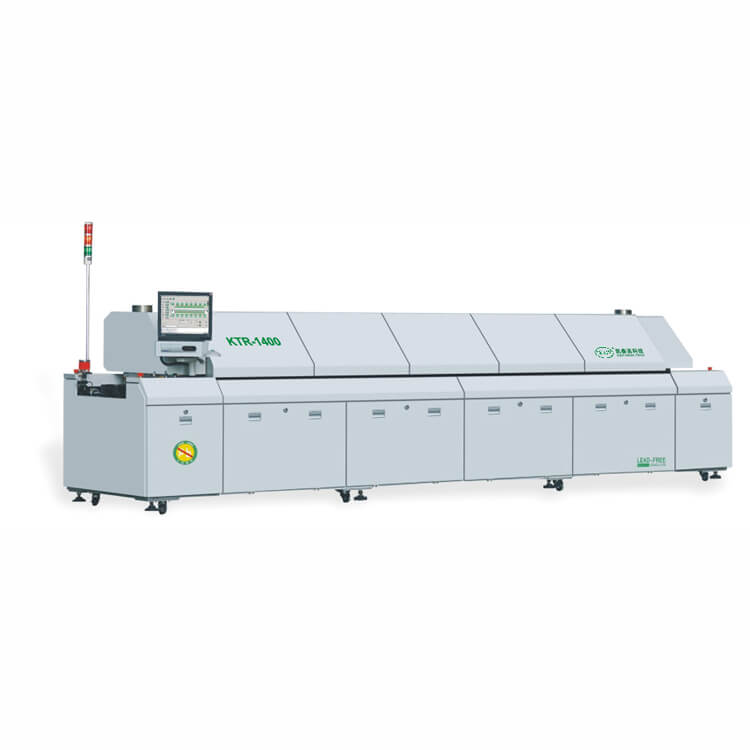

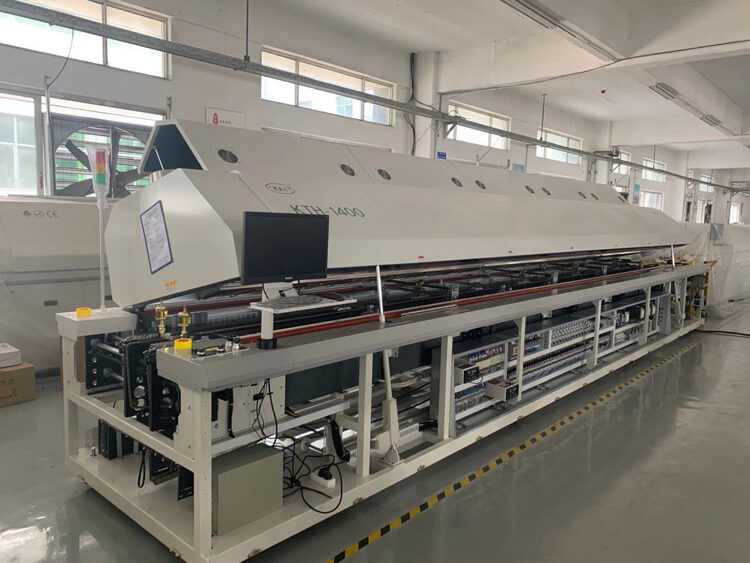

  • 14 Zones SMT Reflow Oven KTR 1400
14 Zones SMT Reflow Oven KTR 1400

14 Zones SMT Reflow Oven KTR 1400

  • 14 heating zones
  • 3 cooling zones
  • Weight Approx:3600kg
  • Dimension 7700*1430*1530mm
  • Product description: 14 Zones SMT Reflow Oven KTR 1400, 14 heating zones, 3 cooling zones, Weight Approx:3600kg, Dimension 7700*1430*1530mm
  • INQUIRY

14 Zones SMT Reflow Oven KTR 1400

Specifications:


Features:

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The long heating passage offer more stable heating increasing profile, more good for nowadays temperature sensitive chips.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

Model

KTR-1400

Control

Industrial computer

Heating zones qty.

Top 14, bottom 14

Cooling zones qty.

Top 3, bottom 3

Heating zone length

5375mm

Rectifying plate

Thick copper plate

Weight

Approx:3600kg

Dimension

7700*1430*1530mm

Exhaust capacity

11㎡/min×2

Color

Grey

Control system

Electricity supply

3P 380V/220V 50/60HZ

Temp. control range

Room temp.~300℃

Total power

104KW

Temp. control accuracy

±1℃(static state)

Start power

45KW

Temp. control method

PID +SSR drive+ PLC

Consumption power

12KW

PCB temperature deviation

±1.5℃

Speed control

3 Inverters adjust

Data save

All profiles can be saved

Warm up time

Apprx.30minute

Abnormal alarm

High, low temp. alarm

Conveying system

Rail structure

2 sectional rails

Rail fixed method

Front fix

Chain structure

Stainless steel, stuck-free type

Conveying height

900±20mm

PCB Max. width

50-400mm

Conveying method

Mesh+ chain+ rail

Component height

Top/bottom 30mm

Conveying speed

300-2000mm

Conveying direction

Left to right

Lubrication

Automatic

Cooling system

Cooling method

Forced air cooling

Heating features

Heating zones

Top 14,bottom 14(5375mm)can meet the need of the peak lead-free technique.

Cooling zones

After cool down by forced air, PCB temp. is ≤70℃ at the exit.

Warm up time

From the normal temp. to set temp, approximate 30 minutes.

Warm up sequence

Warm up from two side, save the power and time

Profile transfer time

<15min

Heating zone temp. control accuracy

±1℃

PCB temp. deviation

±1℃

Empty to full load heat balance respond time

≤20
