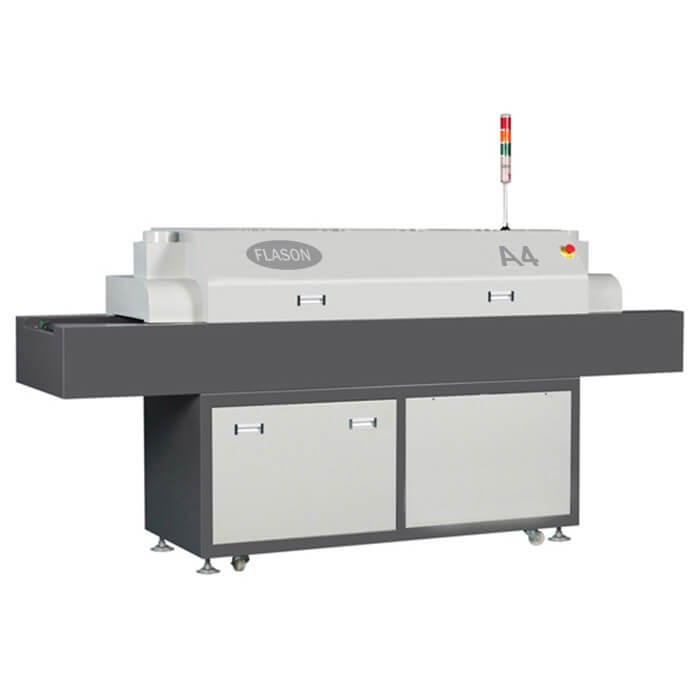

4 Heating Zones Small Reflow Oven A4

Max width of PCB board 300mm
Heating zones: 6
Heating method: Hot Air
Usage: SMT Assembly line

4 Heating Zones Small Reflow Oven A4

Specifications:

4 Heating Zones Small Reflow Oven A4

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.

2. Using special high temperature barrier structure for heat preservation and special iron in Heating passage.

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.

4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.

No.2 Smooth and reliable transmission system

1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.

2. Independent roller structure support and match stainless steel mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min.

3.Special stainless steel mesh belt: durable and wear-resistant, long lifetime.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.

2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.

3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .

4. Heat energy is abundant, heat up fast, it’s only need 20 minutes from room temperature to set-point temperature.

5. Failure diagnosis, visual & audio alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.

model

Flason A4

Number of heating-zone

up four/bottom four

Length of heating-zone

1400mm

Heating way

Independent and cycle full hot air

Max width of PCB board

300mm

Transmission direction

left→right

Transmission belt height

800±20mm

Transmission speed

0-2000mm/min

Starting power

10KW

Normal working consume

4KW

Warm-up time

About 20 minutes

Temperature control range

Room temperature-300ºC

Temperature control way

PID controlling

Temperature precision

accuracy ±1ºC

Temperature disparity on PCB board

±2ºC

Abnormity alarm

Temperature abnormity supper high or supper low temperature
After constant temperature

Power supply

5 lines and 3 phase 380V 50/60Hz

dimension(mm)

2600×615×1400mm

weight

350KG
