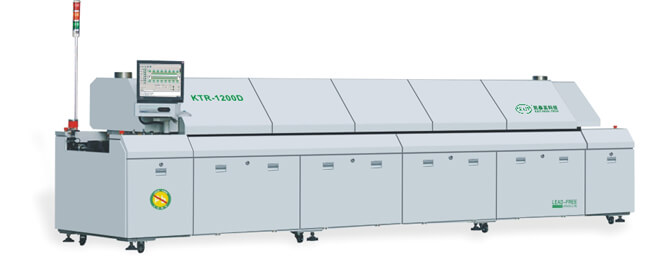

Dual Lane SMT Reflow Oven KTR-1200D

12 heating zones
dual rail conveyor
Weight APPROX:3360KG
Dimension 7050*1680*1530mm

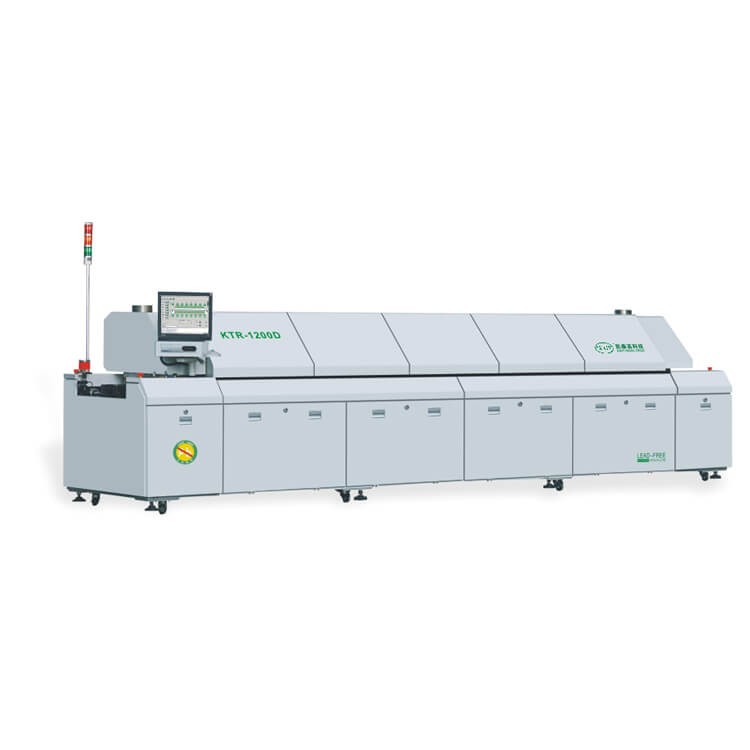

Dual Lane SMT Reflow Oven KTR-1200D

Specifications:


Dual Lane SMT Reflow Oven KTR-1200D

Features:

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.

Model

KTR-1200D

Control

Industrial computer

Heating zones quan.

Top 12, bottom 12

Cooling zones quan.

Top 3, bottom 3

Heating zone length

4675mm

Current plate

Thick copper plate

Weight

APPROX:3360KG

Dimension

7050*1680*1530mm

Exhaust capacity

10/min×2

Color

Grey

Control system

Electricity supply

3P 380V/220V 50/60HZ

Temp. control range

Room temp.300℃

Total power

99KW

Temp. control accuracy

±1℃static state

Start power

44KW

Temp. control method

PID +SSR drive

Consumption power

12KW

PCB temperature deviation

±1.5℃

Speed control

3 sections with 3 inverters

Data save

All profiles can be saved

Warm up time

Apprx.30minute

Abnormal alarm

High, low temp. alarm

Conveying system

Rail structure

2 Sectional structure

Rail fixed method

Front fix

Chain

Stuck-free stainless steel type

Conveying height

900±20mm

PCB Max. width

50-400mm

Conveying method

Rail+ chain

Component height

Top/bottom 30mm

Conveying speed

300-2000mm

Conveying direction

Left to right

Lubrication

Automatic

Cooling system

Cooling method

Forced air cooling

Heating features

Heating zones

Top 12,bottom 124675mmcan meet the need of the peak lead-free technique.

Cooling zones

After cool down by air, PCB temp. is ≤50℃ at the exit.

Warm up time

From the normal temp. to set temp, approximate 30 minutes.

Warm up sequence

Warm up from two side, save the power and time

Profile transfer time

15min

Heating zone temp. control accuracy

±1℃

PCB temp. deviation

±1.5℃

Empty→ full load heat balance respond time

≤20 s
