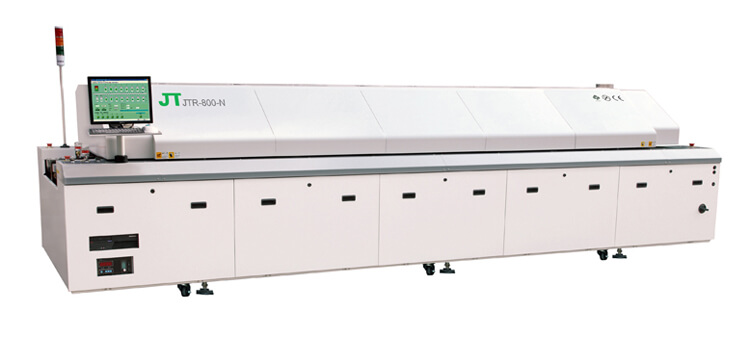

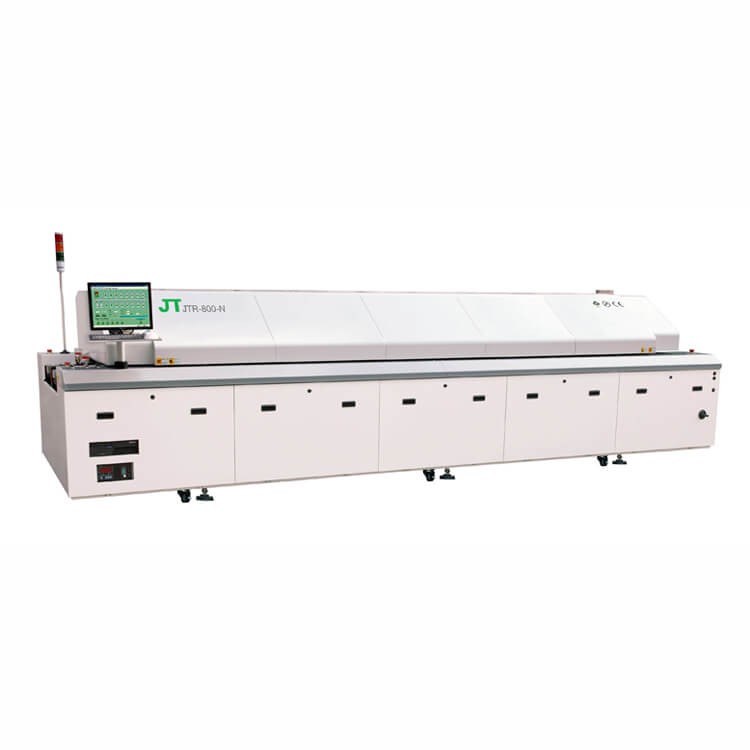

JT SMT Reflow Oven JTR series

JT SMT Reflow Oven JTR series

Specifications:

JT SMT Reflow Oven JTR series

JT Reflow Oven JTR series JTR-600/JTR-600-N, JTR-800/JTR-800-N, JTR-1000/JTR-1000-N, JTR-1200/JTR-1200-N

Longer heating area makes higher production efficiency and throughput.

15% improvement of heat transfer efficient resolved more complicated and larger PCB lead-free technology.

Strengthened main sweep keep rail no transverse deformation, no board stuck and dropped.

Chamber designed for fully protecting and closing to keep no leaving of N2, the lowest content of O2 can be 150ppm.

Low consumption of N2, 20-22 m³/H of N2 reflow in O2 content is 300-800PPM condition.

MODEL	JTR-600/JTR-600-N	JTR-800/JTR-800-N	JTR-1000/JTR-1000-N	JTR-1200/JTR-1200-N
Outside Dimension（L*W*H）	4190 x1430 x1530	5520 x1430 x1530	6300 x 1430 x 1530	7050 x 1430 x 1530
Weight	1850KG	2400KG / 2500KG	2700KG / 2800KG	3000KG / 3100KG
Number Of Heating Zones	Up /Bottom 6	Up /Bottom 8	Up /Bottom 10	Up /Bottom 12
Length Of Heating Zones	2295mm	3110mm	3890mm	4640mm
Number Of Cooling Zones	1(Cool Air Conversion)	Up 3 / Bottom 3 (Cool Air Conversion)
Exhaust Volume	10 M3 / min x 2 ( Exhausts)
Electric Supply Required	3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required	48KW / 51KW	64KW / 67KW	80KW / 83KW	93KW / 97KW
Power For Warm Up	24KW / 26KW	30KW / 32KW	36KW / 38KW	40KW / 42KW
Power Consumption	6.5KW / 7KW	9KW / 10KW	10KW / 11KW	11KW / 12KW
Warming Time	Approx. 20 minu	Approx.25 minu

Keywords:

JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments ,  JUKI products,  JUKI Pick and Place Machine Machine,  JUKI SMT Stencil Printer,  JUKI Assembly Line,  JUKI SMT Reflow Oven;  JUKI SMT Inspection Machine;  JUKI SMT Spare Parts;  SMT Equipment;  JUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
