Applicable Components: 0603
Board size:330×250mm
Feeder inputs:80
placement capacity:12,500CPH

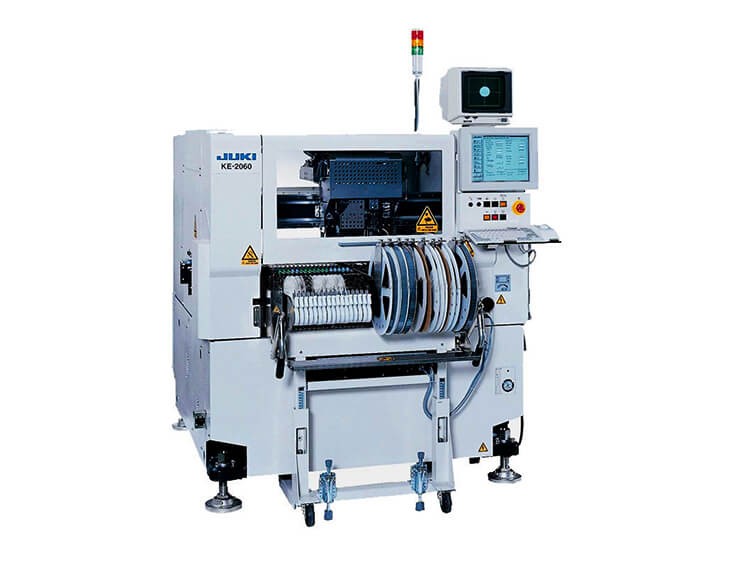

JUKI KE-2060M Pick and Place Machine
Specifications:
JUKI KE-2060M Pick and Place Machine
The ultra-flexible KE-2060 can place a wide range of components from 0603 and ICs, to odd-form, all at a high rate of speed.
12,500CPH?chip (laser centering/effective tact)
1,850CPH: IC (vision centering/effective tact), 3,400CPH with MNVC option.
One multi-nozzle laser head (4 nozzles) plus one high resolution head (1 nozzle)
from 0603 ?0201? to 74mm square components or 50×150mm
0402 (01005) option factory installed.
Vision centering system (featuring bottom, side, and back lighting, ball recognition and split recognition)
1 Actual throughput may vary.
2 Please download brochure for details.
Main Features of SMT Pick and Place Machine
Board size M size (330×250mm)
L size (410×360mm)
L- wide (510×360mm)
E size (510×460mm)*1
Component size Laser recognition 0603 (0201)mm20mm or 26.5×11mm
(0402 (01005) optional)*5
Vision recognition 1.0×0.5mm*2mm20mm or 26.5×11mm
Placement speed Chip 12,500CPH*2
IC 3,290CPH*3
Placement accuracy Laser recognition ±0.05mm
Vision recognition ±0.04mm
Feeder inputs Max. 80 on 8mm T/F*4
*1 Production arrangement starts only after receipt of P/O for E size board.
*2 Effective tact: The chip placement speed indicates an estimated value obtained when the machine places 400 1005-chips all over an M size board.
CPH number of components placed for one hour
*3 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
*4 In addition to matrix tray changer, max 110.
*5 Please ask for details on 0402(01005) placement.
